DE-15 connector Li'lBoard page.

Model number: LB7.15.

Description: A DE-15 female type connector. Designed for VGA connections but not exclusive to VGA.

Applications: Use to connect to a monitor, either to drive it or just to read the DDC (Display Data Channel) codes.

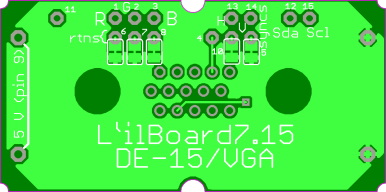

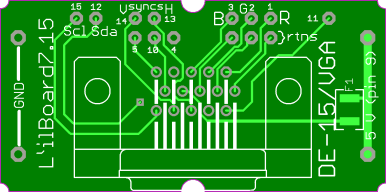

Images:

SPI: N/A

Tenth centers: Mostly, though the grounds/returns for the signals are in the same columns as the signals.
