Small Motor driver: L'ilBoard3.07.

Small Motor driver Li'lBoard page.

Model number: LB3.07.

Description: Provides a small full bridge motor driver circuit. Capacity is up to 36 V at 2.8 A peak

Applications: Drive a small motor or other coil.

Key components: TI DRV8801

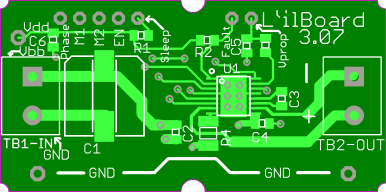

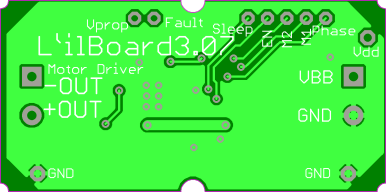

Images:

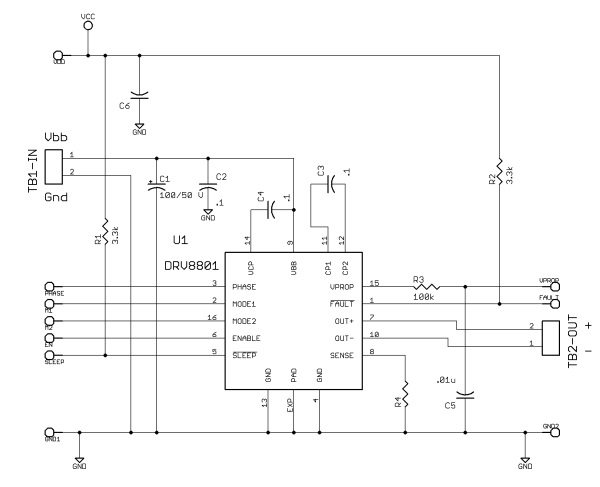

Schematic:

Click on image for full (PDF) schematic

Vin max: Vbb: 38

Vin min: Vbb: 8 V (Vdd not connected to chip, is just pull-up voltage)

SPI: N/A.

Tenth centers: YES
