Dual single supply opamp, larger size Li'lBoard page.
Model number: LB3.06.
Description:
A dual Op Amp in an 8-pin SOIC. 6 combination TH(1/4 W)/SMD(1210) resistor sites per amplifier.
Ideal when the model 3.02 is just too darn small.
Applications: Many generic single-rail op-amp circuits.
Features:
•Each of the 6 resistors per op-amp are sites where either an SMD (1210 case) or a through-hole device can be installed. Not all components have to be resistors, however the maximum physical size is limited.
•The support software provides a complete single-supply op-amp biasing calculator based on desired (dc) inputs and outputs.
•Many different dual, single supply op-amps are available in this package.
•A versatile facility for selecting the reference voltage for each amplifier&'s input circuit is implemented.: an on-board reference (in an SOT-23 package) site is available, or the reference can be the supply, the ground, or an external reference.
Key components: A, 8-pin dual op-amp in a SOIC package. Many devices can be used, default is the OPA2340.
Support page: Click here
Restrictions: The support software provides dc design and analysis only.

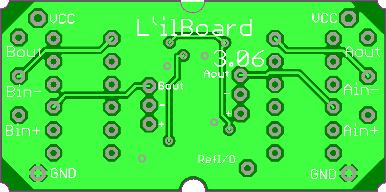

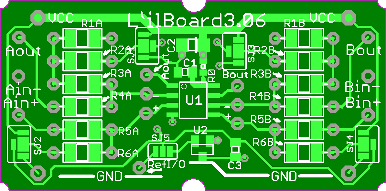

Images:
Vin max: 5.5
SPI: N/A.
Tenth centers: YES
