18 pin PIC Li'lBoard page.

Model number: LB4.03.

Description: Several PICs come in the 18 pin SOIC package, such as the popular PIC16F628A.

Applications: Any application that can use this size PIC.

Features:
•The board is set up with a crystal site on the bottom. As well, either external or internal clock modes can be used, depending on what the chosen processor has.
• 5-pin ICSP programming connector supplied.

Key components:
PIC16F54/83/84A/87/88/627A/628A/648A/818/819/1826/1827 or
PIC18F1220/1320/1230/1330

Restrictions: The PIC18F devices use different but compatible port numbering.

Images:

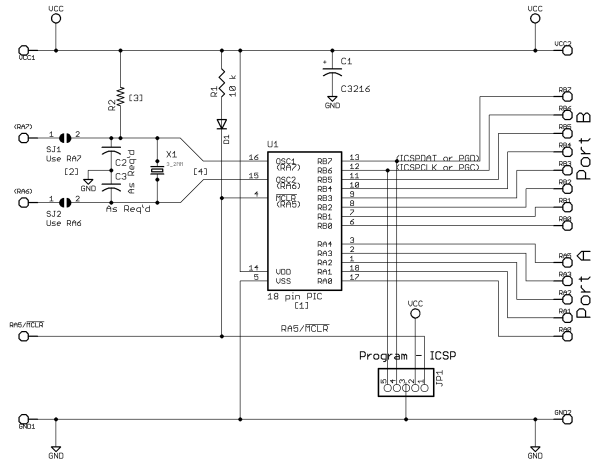

Schematic:

Click on image for full (PDF) schematic

SPI: Potential host.

Tenth centers: Yes
