ATtinyx4 chip: L'ilBoard4.06.
Tessellated Circuits: Home => New Home => Li'lBoard Categories => Digital boards => A digital board

ATtinyx4 chip Li'lBoard page.

Model number: LB4.06.

Description: ATtiny24/44

Applications: These popular 8 bit ATtinys can be used many places. One “feature” is inherent in the programming environment from Atmel: the C compiler is unrestricted and inherent in the AVR Studio environment.

Images:

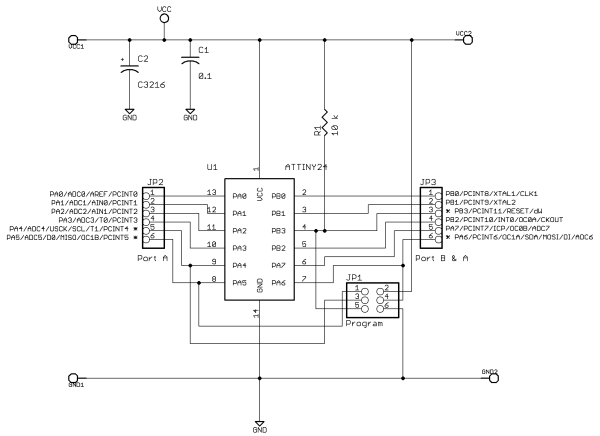

Schematic:

Click on image for full (PDF) schematic

Vin max: 5.5

Vin min: 2.7

SPI: Potential host.
Programs via SPI.

Tenth centers: YES

Link to the previous board (SOT-23-6 PIC)

Link to the next board (MSP430F201x)
