Propeller, the processor.: L'ilBoard4.11.
Tessellated Circuits: Home => New Home => Li'lBoard Categories => Digital boards => A digital board

Propeller, the processor. Li'lBoard page.

Model number: LB4.11.

Description: A basic implementation of the Parallax Propeller chip. All I/O pins are available, which is not the case in some of the competition.

Applications: See Parallax's Propeller site, http://www.parallax.com/tabid/407/Default.aspx, for ideas.

Features: Includes an EEPROM for program storage. If a program update is needed, then an RS-232-timed serial port (USB or otherwise) can be hooked up to two port lines. The board can mount either a standard HC-49(S) crystal or an SMD TCXO. The later option allows all those built-in timers to run more accurately than on your average Prop!

Key components: P8X32A-Q44 (44-LQFP)

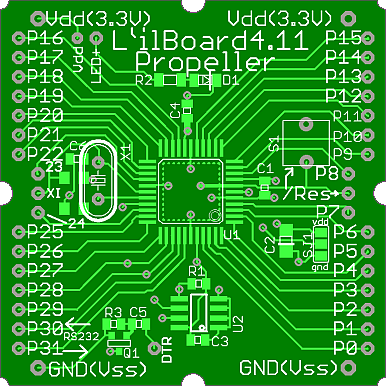

Images:

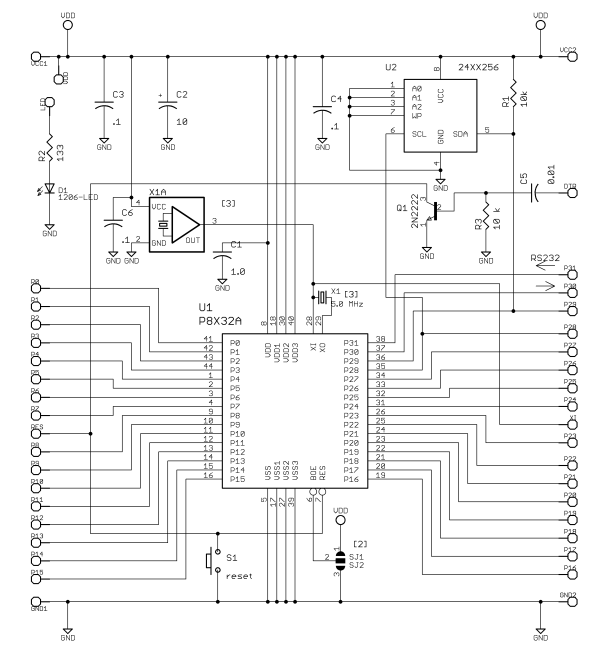

Schematic:

Click on image for full (PDF) schematic

Vin max: 3.6 V

Vin min: 2.7 V

Link to the previous board (SPI port)

Link to the next board (L'ilduino.)
