LED array Li'lBoard page.

Model number: LB5.02.

Description: 2×4 array of T1, T1 3/4 or SMD (0605, 0805 or 1206 sizes) LEDs.

Applications: Use wherever up to 8 discrete LEDs need to be driven as indicators.

Features: Designed to mount on top of a L'il4.10 so that the LEDs can be driven by an SPI port, or just as easily use stand-alone. The LEDs can be a variety of sizes and colours.

Support page: Click here

Images:

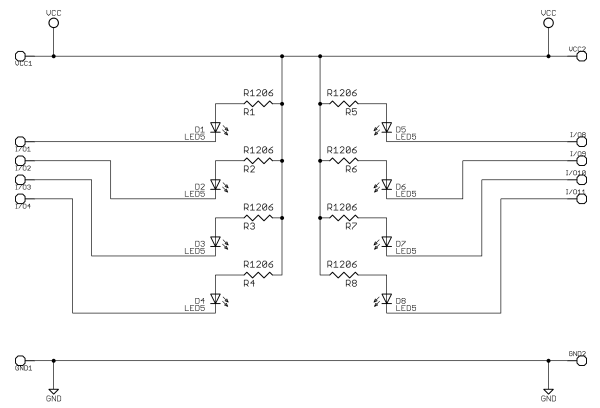

Schematic:

Click on image for full (PDF) schematic

SPI: Yes (with a L'il4.10).

Tenth centers: YES
