Hex-coded switch Li'lBoard page.

Model number: LB5.05.

Description: Two 4-bit hex rotary switches, or an 8-bit DIP switch, or many combinations of rotary and DIP switches.

Applications: Can be used anywhere where one or two 4-bit codes are wanted, e.g. could be used if developing an X-10 receiver. Decimal (BCD) switches can be used instead if needed.

Features: Designed to mount on top of a L'il4.10 so that the switch codes can be converted to SPI bus signals, or to be used stand-alone with your own wiring.

Images:

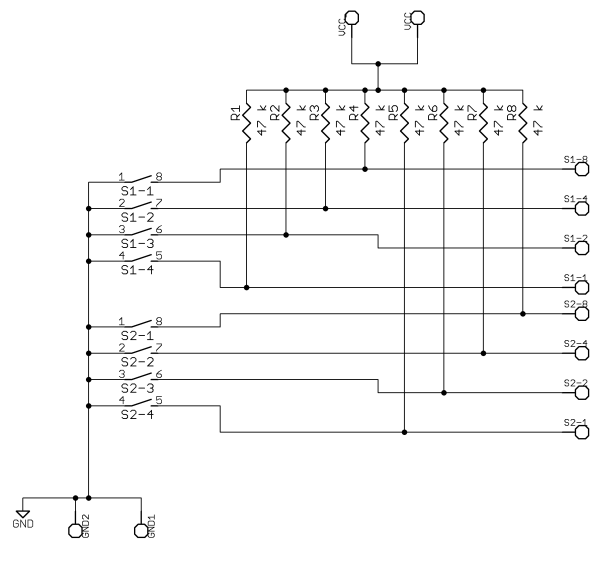

Schematic:

Click on image for full (PDF) schematic

SPI: Yes, using a L'il4.10 as a base.

Tenth centers: YES
