USB controller Li'lBoard page.

Model number: LB6.02.

Description: Use the Vinculum chip (VNC1L) to provide a USB controller.

Applications: Work with any USB peripheral. Software required!

Restrictions: The 2nd USB bus is accessible, however there is no RC filtering provided on it. A 27 Ohm series resistor followed by a 47 pF capacitor, or similar, might be needed. See schematic.

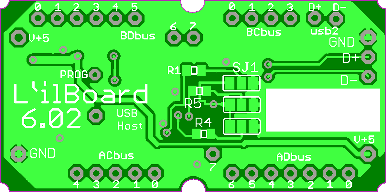

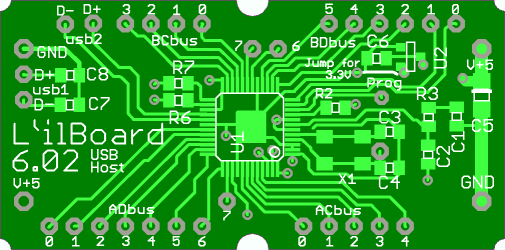

Images:

Schematic:

Click on image for full (PDF) schematic

Vin max: 3.3 V nominal

Vin min: 3.3 V nominal

SPI: Yes (or RS-232).
