LQFP-100 Li'lBoard page.

Model number: LB8.07.

Description: A 0.40 mm-pitch, 100 pin Quad Flat Pack board.

Applications: Connect to a chip such as one of the 100-LQFP PICs.

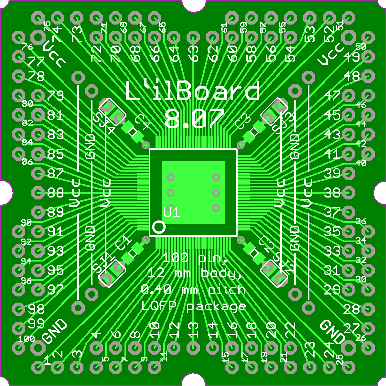

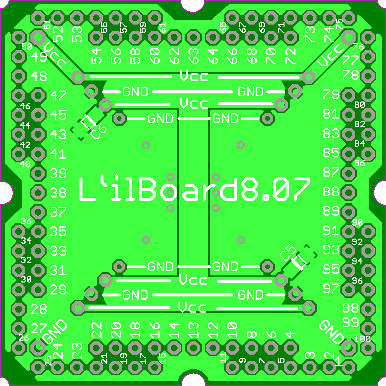

Images:

SPI: N/A

Tenth centers: Yes (not directly compatible with solderless breadboards due to square layout and double rows).
