Quad double supply opamp Li'lBoard page.

Model number: LB3.04.

Description:
A quad Op Amp in a 14-pin SOIC. 4 SMD (0805) resistor sites per amplifier.

Applications: Many generic dual-rail op-amp circuits. Good when multiple channels of gain are needed, such as in an acquisition system.

Features: Designed to be able to be modified for single rail op-amps which use the same package. Square pads are ground.

Support page: Click here

Restrictions: Components other than the usual 4 resistors per op amp would have to be off board. Due to space limitations, the 0805 resistor sites are NOT dual SMD/through-hole.

Images:

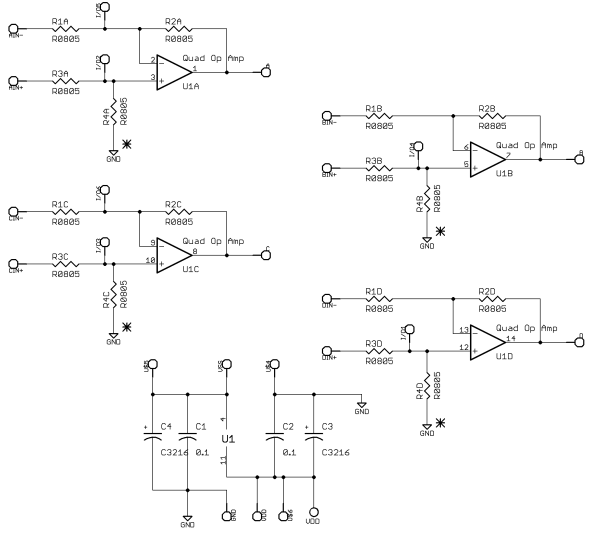

Schematic:

Click on image for full (PDF) schematic

SPI: N/A.

Tenth centers: NO
