DPDT slide switch: L'ilBoard5.07.

DPDT slide switch Li'lBoard page.

Model number: LB5.07.

Description: Single mechanical DPDT slide switch.

Applications:
•Select between two signals, including differential signals, or use to reverse polarity of a balanced line.
•Can also be used as a power switch (only 20 mA max at 20 V, though--the rating is .4VA) if two rails need to be switched.

Features: A couple of solder-blob jumpers are provided so that a “reversing” switch can be created easily without the need for additional wires.

Key components: Tyco MHS22204 switch, probably others will fit.

Images:

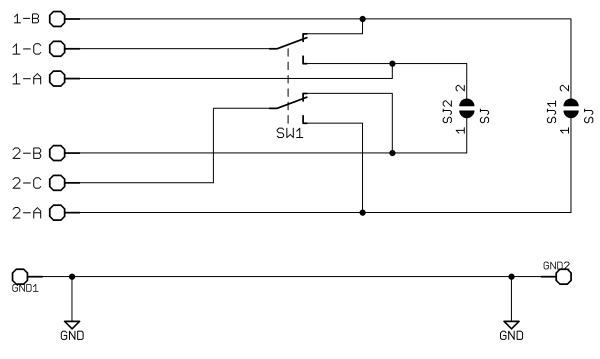

Schematic:

Click on image for full (PDF) schematic

Tenth centers: YES
