Dual single supply opamp Li'lBoard page.

Model number: LB3.02.

Description:
A dual Op Amp in an 8-pin SOIC. 6 combination TH(1/8 W)/SMD(0805) resistor sites per amplifier.

Applications: Many generic single-rail op-amp circuits.

Features:
•Each of the 6 resistors per op-amp are sites where either an SMD (0805 case) or a through-hole device can be installed. Not all components have to be resistors, however the maximum physical size is limited to what you can make fit on a 1/8 W resistor site.
•The support software provides a complete single-supply op-amp biasing calculator based on desired (dc) inputs and outputs.
•Many different dual, single supply op-amps are available in this package.

Key components: A, 8-pin dual op-amp in a SOIC package. Many devices can be used, default is the OPA2340.

Support page: Click here

Restrictions: The support software provides dc design and analysis only.

Images:

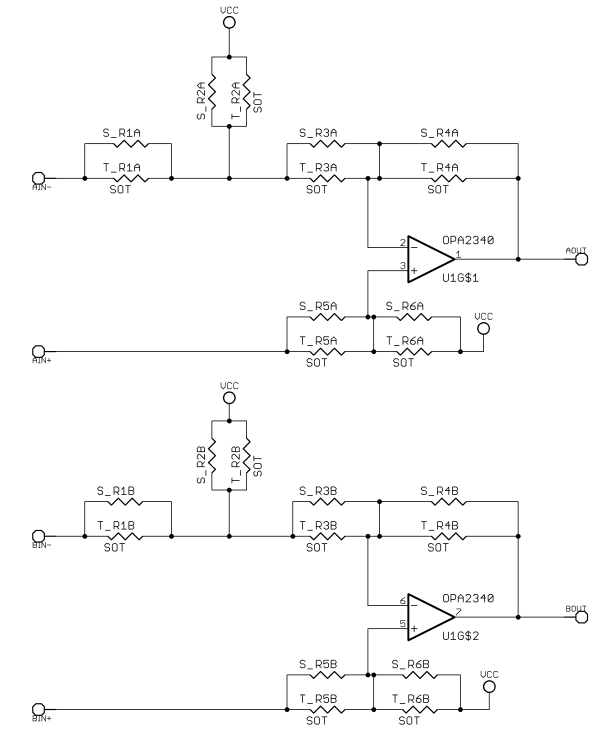

Schematic:

Click on image for full (PDF) schematic

Vin max: 5.5

SPI: N/A.

Tenth centers: YES
